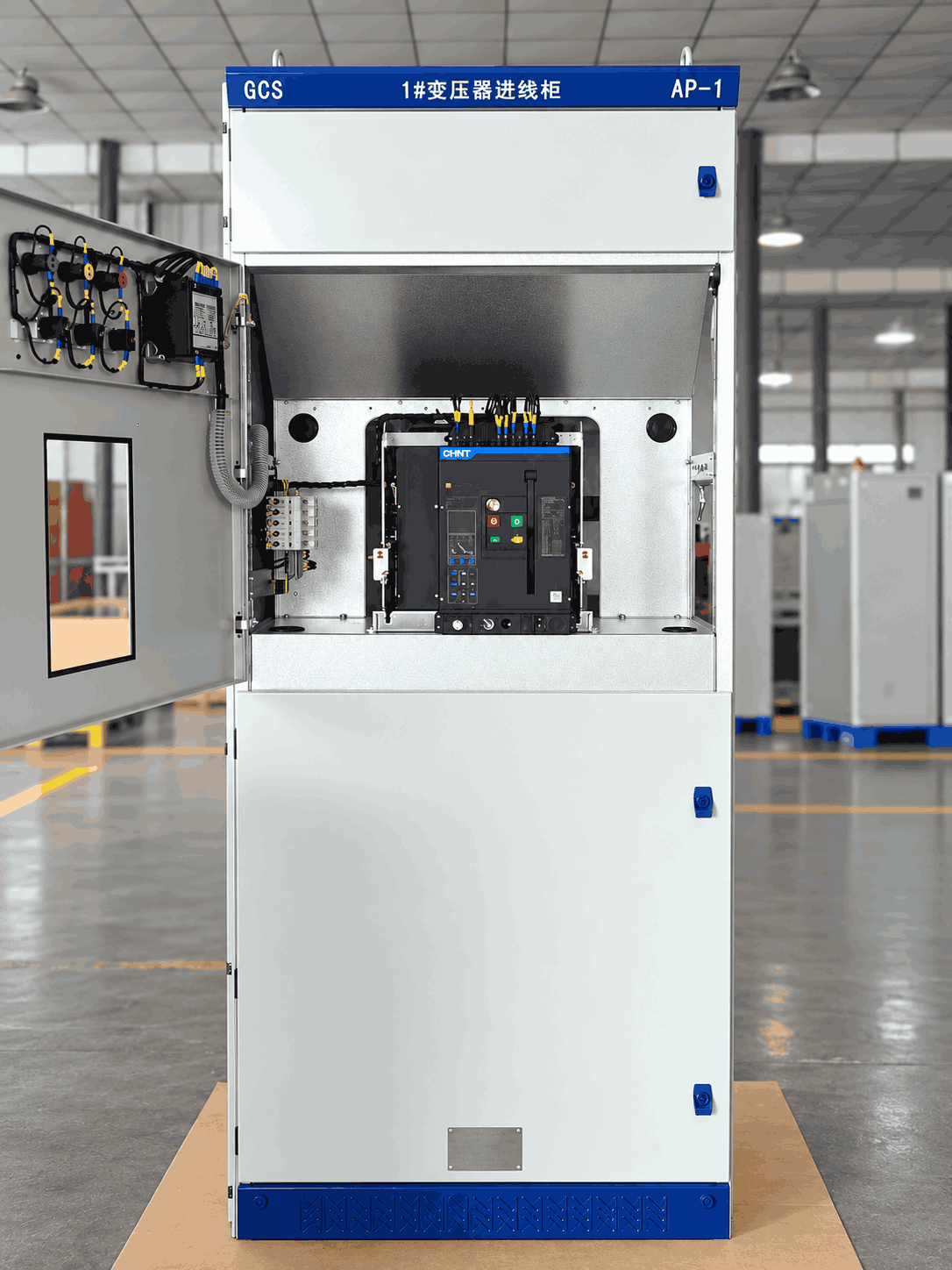

Incoming and outgoing circuits
Identify the supply arrangement, feeder duties and circuit quantities to be included in the lineup.
MODEL SERIES · SHENGYU HENGDA

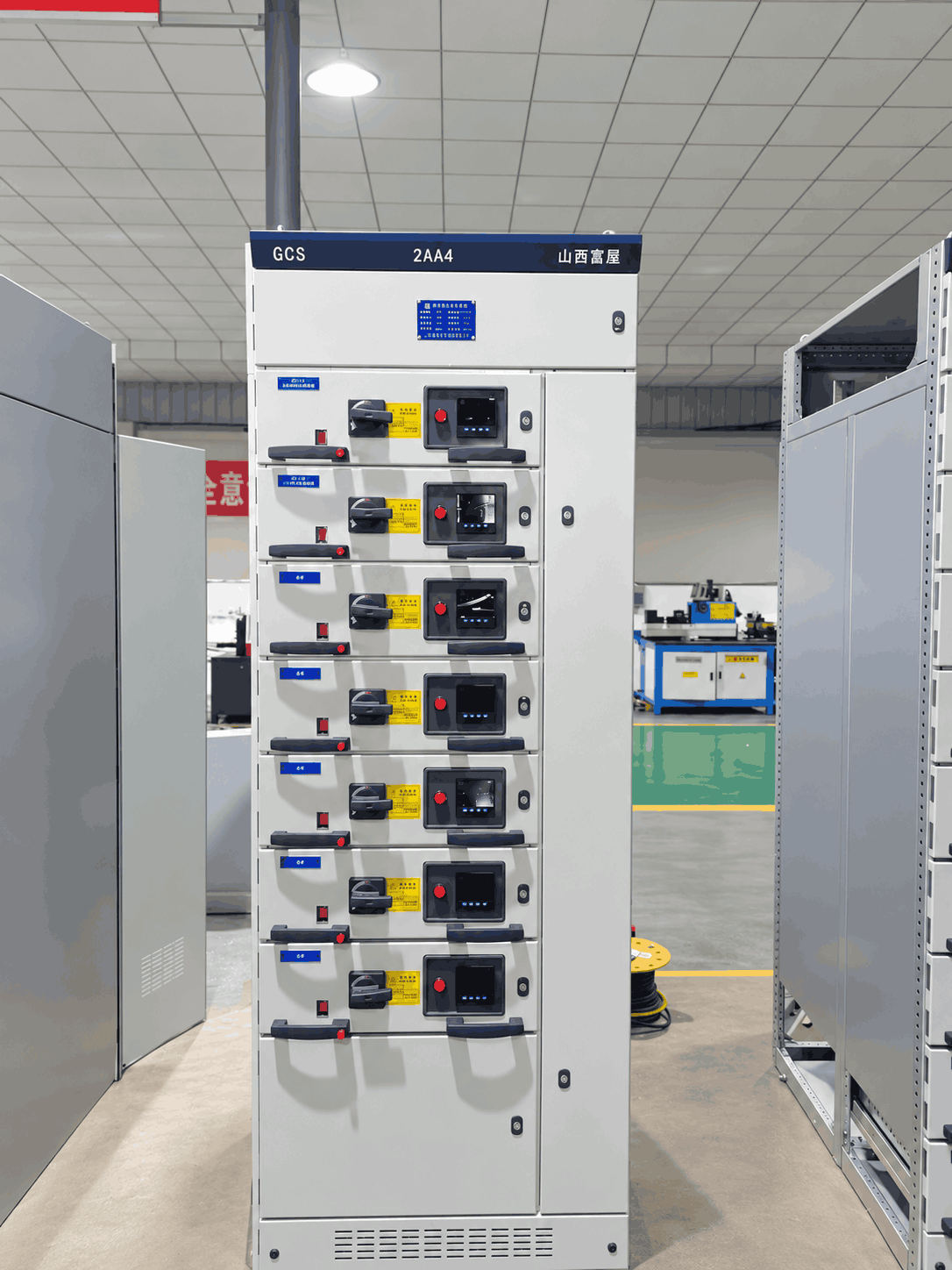

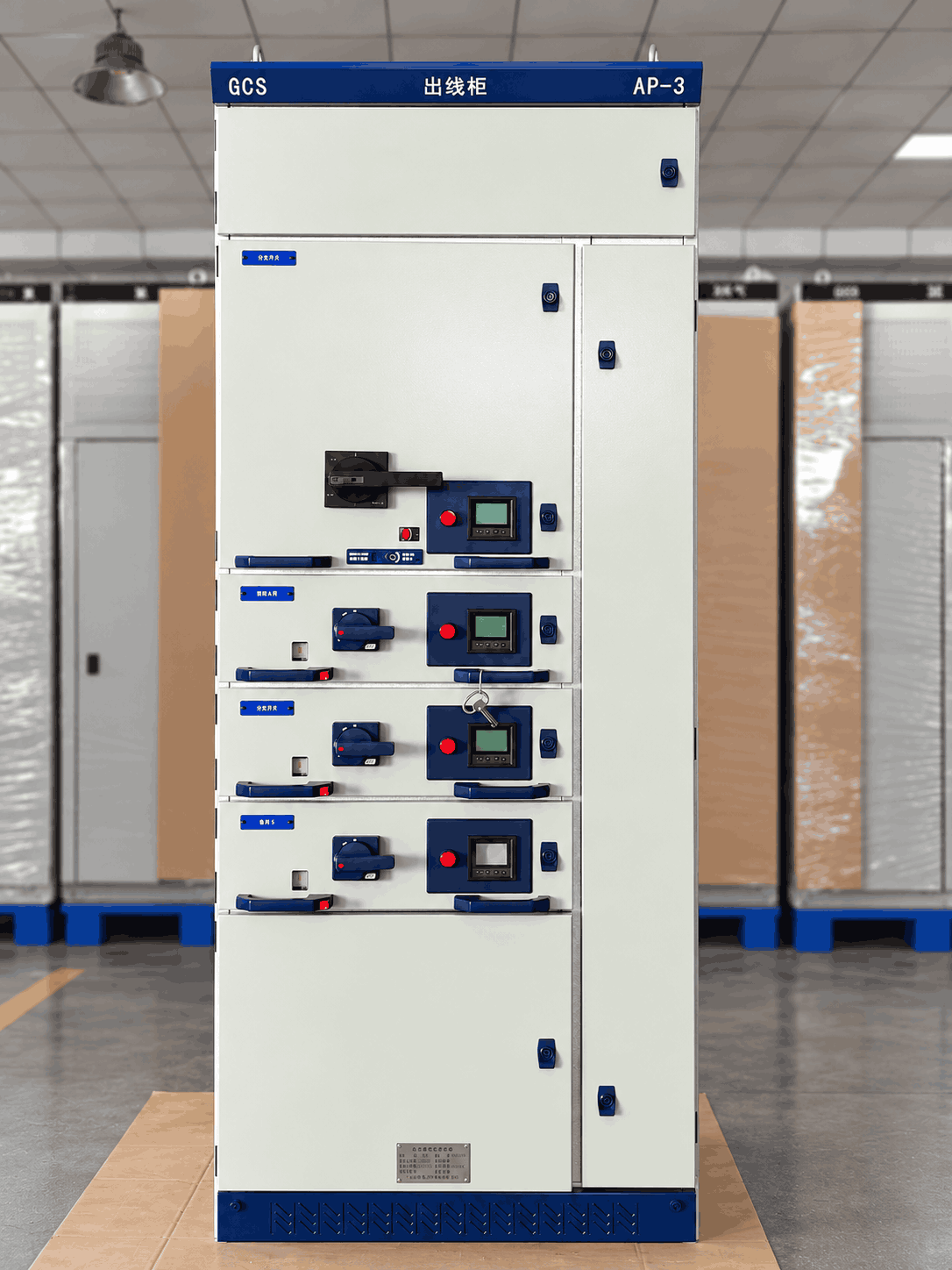

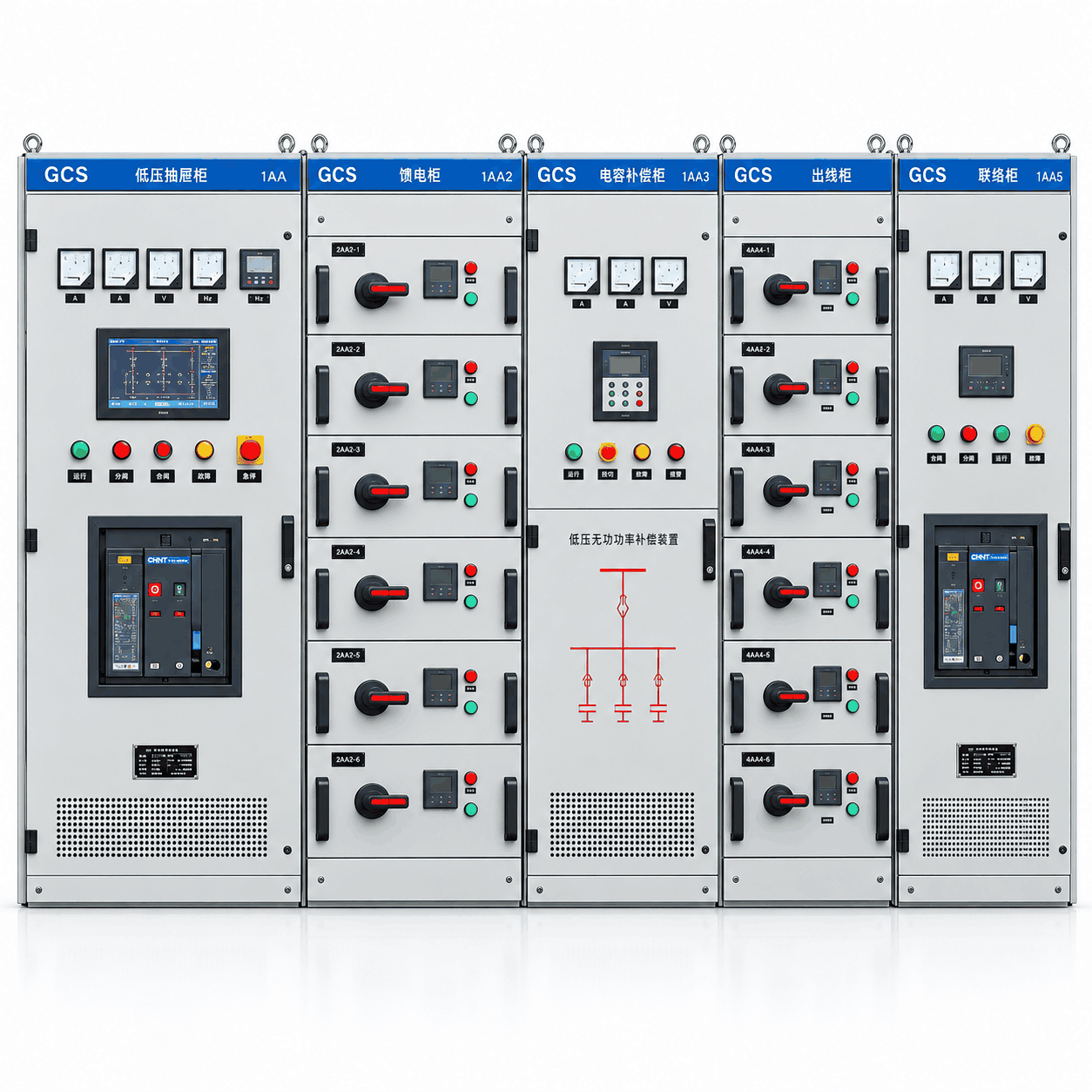

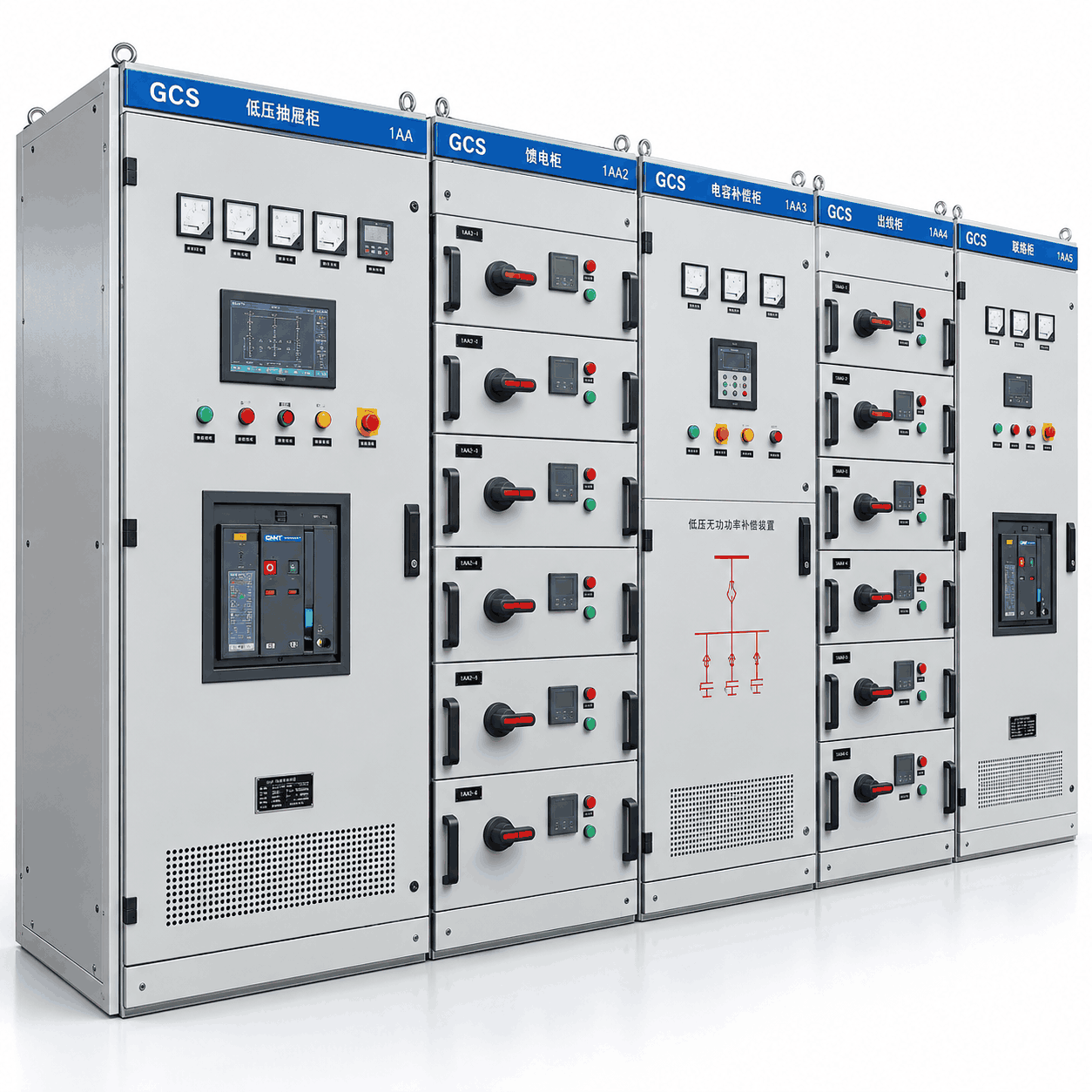

GCS Switchgear
Low voltage withdrawable switchgear, configured around your distribution circuits and project specification.
Email: shengyuhd@gmail.com
PRODUCT OVERVIEW
Start with the application.
A GCS inquiry starts with the circuit schedule: the incoming supply, outgoing loads and the way the lineup connects to the rest of the installation. Share your electrical requirements and available space so the proposed cabinet arrangement can be reviewed against the project.
Project uses to discuss
Projects specifying the GCS series
Distribution lineups with multiple outgoing circuits
Equipment packages requiring a defined drawer arrangement
Explore the product familyCONFIGURATION
The details behind your equipment.
These points help define the project scope. Final equipment specifications are confirmed for the selected configuration.
Withdrawable units
Define the functional units required for each circuit and any project requirements for access or maintenance.
Metering and monitoring
List the electrical measurements, status signals and external monitoring interfaces requested by the project.
Cabinet arrangement
Provide room dimensions, cable-entry preferences and enclosure material requirements for layout review.
The GCS designation identifies the requested series. Ratings, components, functional-unit arrangement and enclosure construction need confirmation for the proposed equipment.
BUILD YOUR PROJECT BRIEF
Your requirements, ready to discuss.
Enter the information you already have. These are your requested values, not confirmed product ratings.
Leave anything unknown blank. Your entries will be carried into the inquiry, so you won’t need to type them again.
Download this worksheetPROJECT DOCUMENTS
Bring the right information together.
Have these documents available when you discuss the equipment with our team.
Single-line diagram
Show incoming supplies, outgoing circuits and the connections to adjacent equipment.
Feeder or load schedule
List each circuit, its duty and its electrical requirements.
Electrical room layout
Mark the cabinet location, available space, access and proposed cable routes.
GCS Switchgear project worksheet
An editable checklist for your requirements. This is not a product datasheet.
PRODUCT QUESTIONS
Before you inquire.
Is the model name enough to request a quotation?
Please also provide the circuit schedule, electrical requirements and quantity. These determine the equipment scope more precisely than the model name alone.
Can this inquiry cover an extension to an existing lineup?
Include the existing equipment drawings, nameplate information and interface requirements. Compatibility must be reviewed before an extension can be confirmed.
IN THE SAME FAMILY
Explore related equipment.
Have a single-line diagram?
Send us your project requirements.
